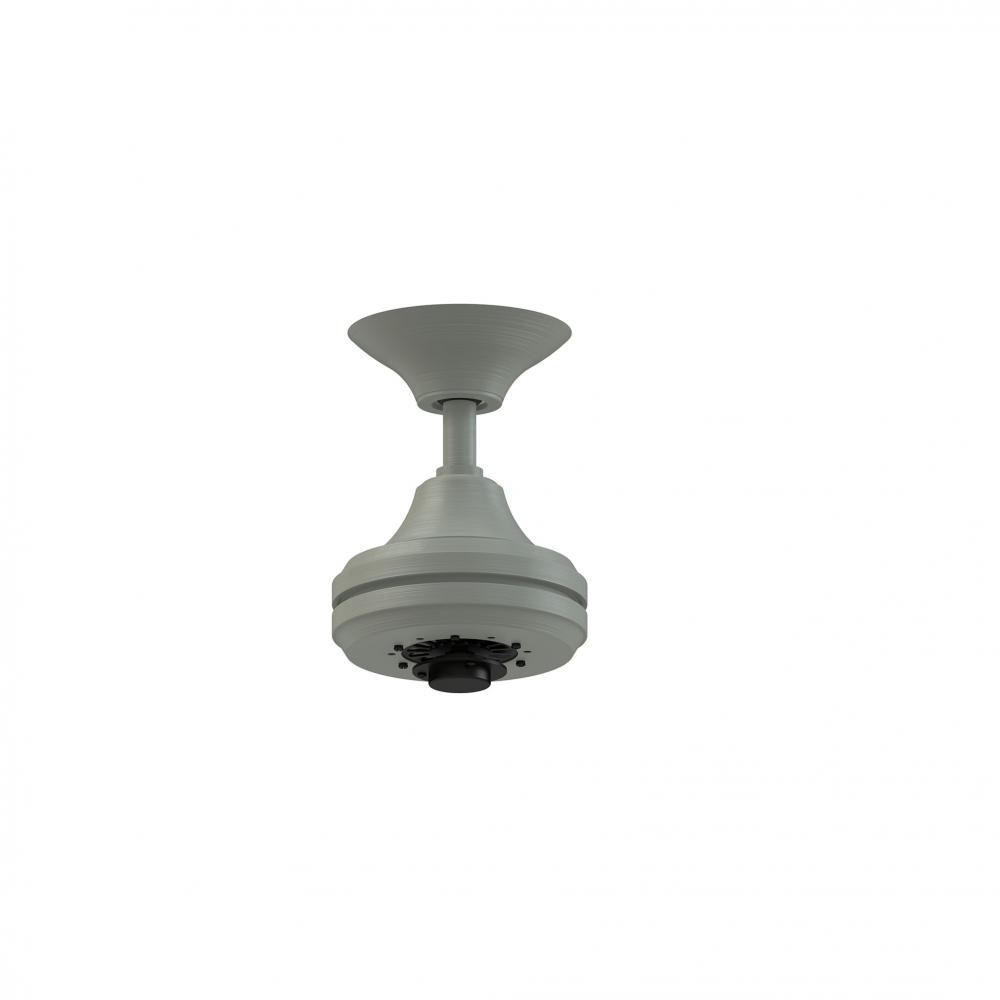

Spitfire Indoor/Outdoor Ceiling Fan Motor - Antique Graphite (71DT7)
The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Product Specification
Item #
71DT7
Dimensions
Height: 12.00"
Width: 48.00"
Length: 48.00"
Additional product details
Internal #
71DT7
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Black
Category
Fan-Multi
Finish
Antique Graphite
Family
Spitfire
Voltage
120 V
Air Flow CFM
5164
Air Flow Efficiency
72
Canopy
7.09 Dia x 2.2 H
Harmonized Codes
8414.51.3000
Light Kit Included
No
Motor Size
188 x 25
Motor Type
AC
Ship Carton Height
10.94
Ship Carton Length
14.37
Ship Carton Width
10.43
Ship Weight
18.74
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
17.42
Airflow Efficiency Low
132
Airflow Efficiency Medium
101
Avg Airflow Efficiency
80
Avg CFM Energy
3527
Avg Energy Use
44
Avg Estimated Yearly Energy Cost
12
Avg Estimated Yearly Energy Cost on HIGH
20
Cap Included
No
Carton Cubic Feet
0.9489
Case Height
10.94
Case Length
14.37
Case Quantity
1
Case Weight Pounds
18.74
Case Width
10.43
CEC Uploaded
Yes
Ceiling To Blade Edge
12
Ceiling To Bottom (No Light Kit)
12
Ceiling To Bottom (With Light Kit)
13.71
CFM Low
1526
CFM Medium
3280
Country of Origin
China
Current Draw High
0.6
Current Draw Low
0.24
Current Draw Medium
0.4
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Downrod Length
4.5
Exempt from DOE Procedure
No
Fan Energy Star 4
No
Housing Diameter
8.07
Included Control
TR500
Included Control Type
Handheld
Leadwire
80
Location Rating
Damp
Max Ceiling Slope
19
Max Length
60
Max Width
60
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM High
198
RPM Low
66
RPM Medium
124
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60HZ
Watts High
72
Watts Low
12
Watts Medium
32
Other Details:
- 3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features
- 5227 CFM on High
- Limited lifetime warranty
- Set of (3) Damp Rated blades with multiple finishes available and 18 watt LED light kit available (sold separately)
- TR500 handheld remote with 23A battery included
- WiFi or Bluetooth compatible (required controls sold separately)
