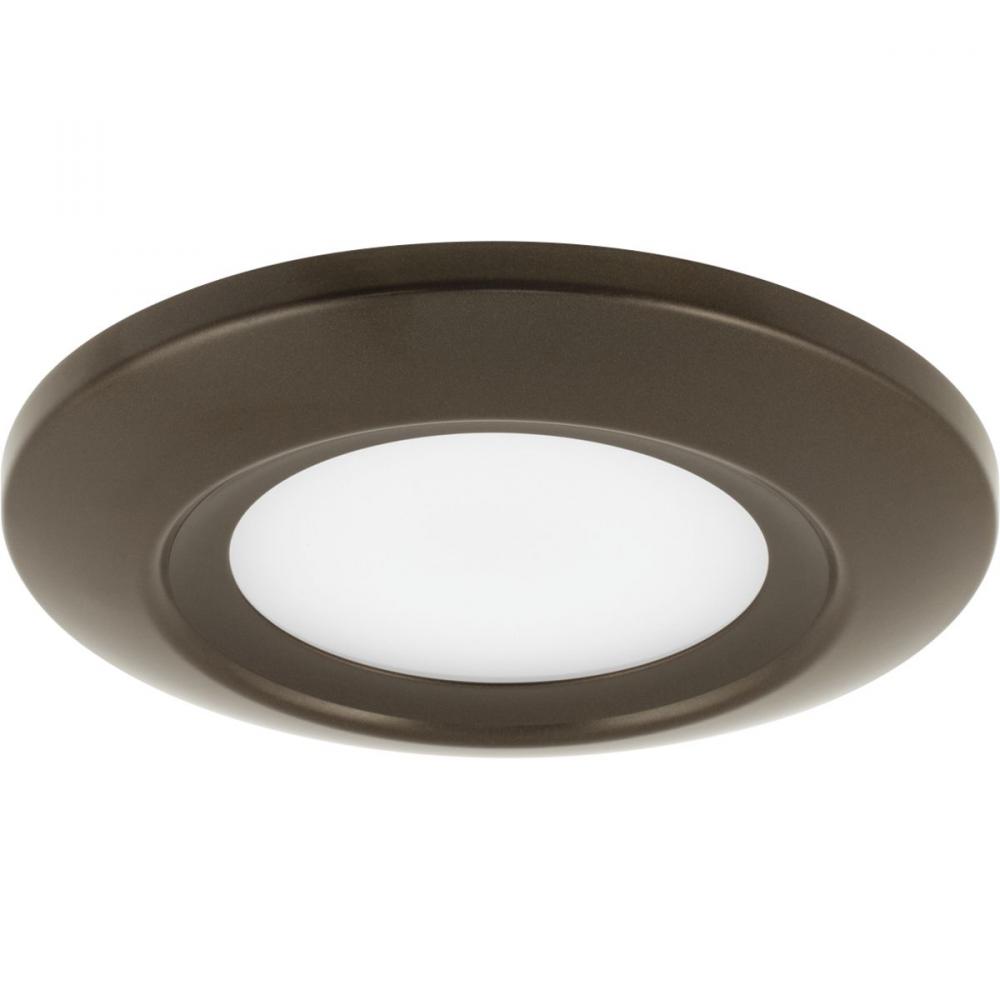

5.5" LED Slim-Line Surface Mount (GAN0U)
The P8108 delivers a solution for flush mount, for both residential and commercial markets. In addition, the P8108 is wet located, Title 24 - JA8 - 2016 and is a cost effective solution for fire rated application. The P8108 luminaire unites performance, cost and safety beneifts.
Product Specification
Item #
GAN0U
Dimensions
Height: 0.75"
Width: 5.50"
Additional product details
Internal #
GAN0U
Category
Flush Mounts
Subcategory
Other Flush Mounts
Finish
Bronze
Style
Traditional
, Transitional
Option
Energy Efficient
, Energy Star
, Title 24
, Wet Rated
, LED
, Prop 65
Lumens
450-800
Mount Type
Flush Mount
Location Rating
Wet Rated
Category
Close-to-Ceiling
Style
Modern;Transitional
Family
Led Flush Mount
Voltage
120
Number Of Bulbs
1 Bulbs
Bulb Hours
50000
Bulb Type
LED
Diameter
5.5
Introduction Date
2017-06-01
Kelvin
3000
Keyword(s)
Flush Mount;Ceiling Fixture;Ceiling Light;Led Light;Energy Efficient
Lumens / Light Output
676
Material
Die-Cast Aluminum
Max Height
2.75
Ship Carton Height
6.87
Ship Carton Length
6.25
Ship Carton Width
2.75
Ship Weight
0.92
Special Features
Antique Bronze finish.;Diffused polycarbonate lens controls direct glare from the LEDs.;Simple snap-in installation for J-Box.;Die-cast aluminum construction with a powder coat paint finish.;Can be installed in a 4" J-Box.;Lumen output and distributio
Vendor Ship Method
UPS
Warranty
5-Year Limited Warranty
Weight
1
Wire Included
6
Americans with Disabilities Act
No
Can be Mounted Up or Down
No
Canopy Shape
Round
Color Generic
Brown
Construction Material
Construction
Country Of Origin
China
CRI
90
Dark Sky
No
Design Series
No
Dimming Compatability
Lutron AYCL-153P;Lutron AY-600;Lutron TGCL-153P;Lutron DVCL-153P;Leviton 6672
Dimming Protocol
Triac/Forward Phase
Finish Type
Painted
Frequency Rating
60
Glass Shape
Lens
JA8
2016
Lamp Type Basic
Solid State
Length Stalled
2.75
Lens Shade Material
Polycarbonate
Long Description
Antique Bronze finish.;Diffused polycarbonate lens controls direct glare from the LEDs.;Simple snap-in installation for J-Box.;Die-cast aluminum construction with a powder coat paint finish.;Can be installed in a 4" J-Box.;Lumen output and distributio
Lumen per Watt
56.3
Mount Location
Flush-Mount
MTO
No
Non UPS Shippable
No
Operating Temprature
30º C
Overall Length With
Overall Ht.
Post Top Fits Standard
No
Proposition 65 Cancer
Yes
Proposition 65 Reproductive Harm
Yes
Proposition 65 Warning Required?
Yes
Safety Rating
cCSAus
Short Description
LED Slim-Line Surface Mount
Showroom
No
Socket Base Type
LED
Starting Temperature - Minimum
-30 °C
Sub Brand
Progress LED
Weight of Fixture Exceeds NEC Limits
No
Wet Rated
Yes
Finish
Additional options that would change other selections
Shade
Additional options that would change other selections
Included Items
Bulbs: (1) x 12 Watt LED
