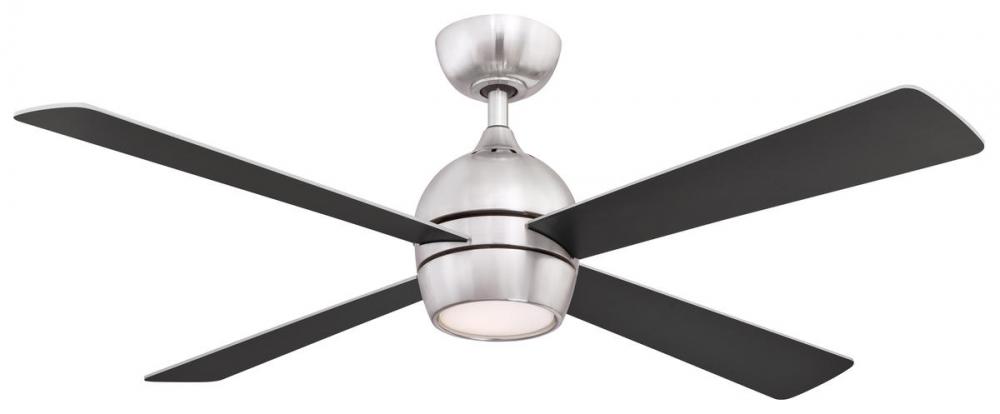

Kwad - 52 Inch - BN with Light (71ATW)
Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
4738 Cubic Feet per Minute
Electricity Rate
56 Watts (excluded lights)
Airflow Efficiency
85 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
71ATW
Dimensions
Height: 15.05"
Width: 52.00"
Length: 52.00"
Additional product details
Internal #
71ATW
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Nickel
Style
Traditional
Option
Dry Rated
, LED
Voltage
10-99
Glass Finish or Style
Frosted
, Opal
Lumens
1101-1600
Number of Blades
4 Blades
Location Rating
Dry Rated
Wattage
18w
Category
Fan-Uni
Family
Kwad 52
Voltage
120
Number of Bulbs
1 Bulbs
Additional Info
3 speed AC motor with reverse switch - fan speed, light and sleep timer functions
, 3533 CFM on High
, Limited Lifetime Warranty
, Set of 4 blades with multiple finish options and 18 watt LED light kit included
, TR500 handheld remote with 23A battery included
, WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
4738
Air Flow Efficiency
85
Amperage
0.47
Blade Finish
Brushed Nickel/Black
Blade Pitch
12
Bulb Type
18W LED Module
Canopy
Diameter- 6.5 Height- 2.58
Diameter
8.4
Down Rod Included
4.5
Electricity Used
56
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
52
Light Kit Included
Yes
Lumens / Light Output
1500
Motor Fan Speed
3
Motor RPM
170
Motor Size
153 X 13
Motor Type
AC
Remote Control Included
TR500
Ship Carton Height
10.12
Ship Carton Length
25.91
Ship Carton Width
10.87
Ship Weight
18.23
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
16.31
Airflow Efficiency Low
156
Airflow Efficiency Medium
107
Avg Airflow Efficiency
96
Avg CFM Energy
3533
Avg Energy Use Watts
37
Avg Estimated Yearly Energy Cost
10
Avg Estimated Yearly Energy Cost on HIGH
16
Blade Finish Method
Paper Overlay
Blade Material
Wood
Blade Reversible
Yes
Blade Sweep
52
Cap Included
No
Carton Cubic Feet
1.6494
Cartons Per Unit
1
Case Height
10.12
Case Length
25.91
Case Weight Pounds
18.23
Case Width
10.87
CEC Uploaded
Yes
Ceiling To Blade Edge
12.27
Ceiling to Bottom with LK
15.05
CFM Low
2168
CFM Medium
3677
Compatible Accessories
CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCB1-52
Compatible Controls
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls
CWRL4LA, CWRL4WH, WC2WH, WR501WH
Country of Origin
China
CRI
90
Current Draw Low
0.24
Current Draw Medium
0.38
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Dry Rated
Yes
Exempt from DOE Procedure
No
Fan Energy Star
No
Included Control Type
Handheld
Leadwire
54
Light Kit Energy Star
No
Maximum Slope Degree
27
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number of Blades
4
Product Certification
UL/CUL
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM Low II
77
RPM Medium IV
127
Safety Rating
UL/cUL
Voltage Cycles
60HZ
Watts Low
14
Watts Medium
34
Watts Per Bulb
18
Finish
Additional options that would change other selections
Glass
Additional options that would change other selections
