P810017-030-30 14IN EDGELIT FLUSH MOUNT (GEMNF)

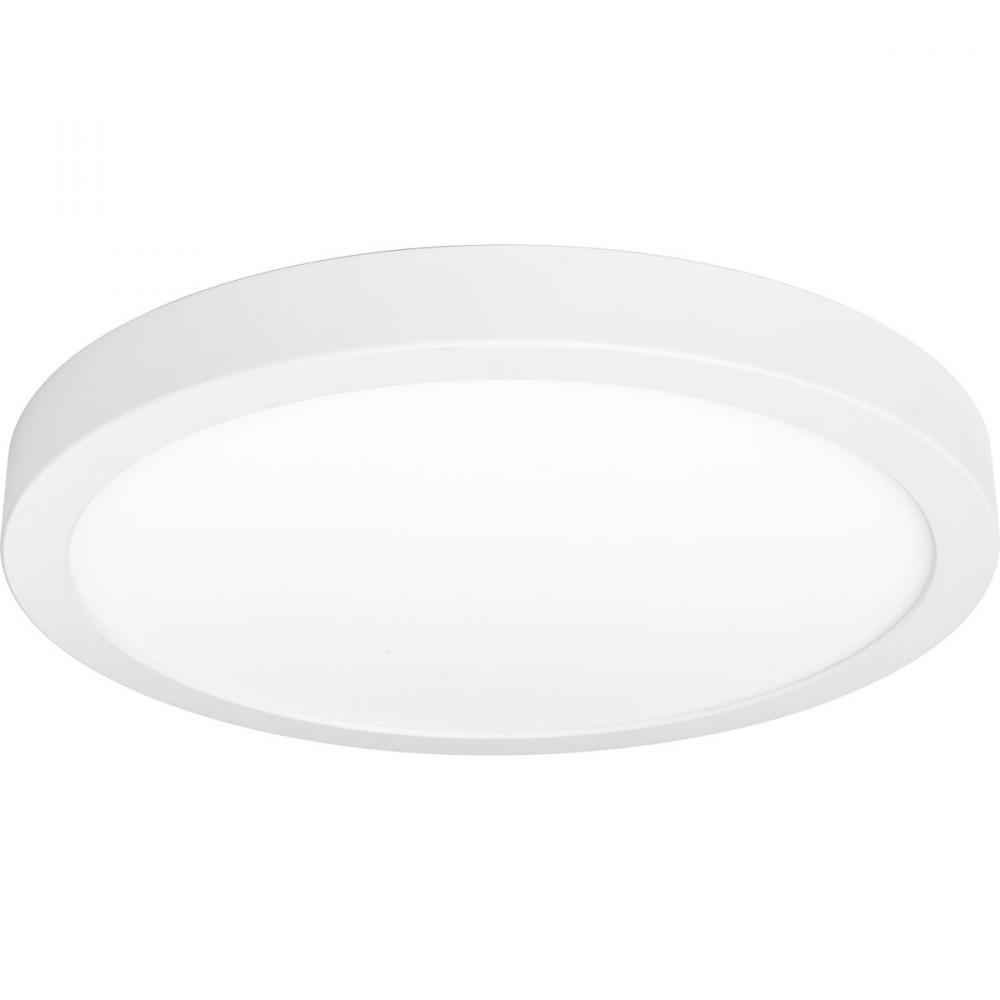

The P810017 Edgelit Flush Mount delivers a solution for both residential and commercial markets. The Edgelit technology provides a bright and evenly illuminated surface in a very slim profile. The integrated LED power supply does not protrude into the junction box, allowing for compatibility to 4" octagonal, 4" round shallow and 4" round PVC junction boxes.This surface mounted luminaire measures 14" in diameter with an overall height of 1". In addition, the P810017 is wet location rated, Title 24 – JA8 – 2016 listed, ENERGY STAR listed and is a cost effective solution for fire rated applications (when installed onto a fire rated junction box). The P810017 luminaire combines modern aesthetic, new technology, performance, cost and safety benefits.
Downloads
Product Specification
Item #
GEMNF
Dimensions
Height: 1.13"
Width: 14.00"
Length: 14.00"
Additional product details
Internal #
GEMNF
Category
Exterior
, Flush Mounts
Subcategory
Exterior Flush mounts
, Outdoor Flush Mounts
Finish
White
Style
Transitional
Option
Energy Efficient
, Energy Star
, Title 24
, Wet Rated
, LED
, Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Close-to-Ceiling
Finish
White
Style
Modern;Transitional
Option
Energy Efficient
, Energy Star
, Title 20
, Title 24
, Wet Rated
Family
Everlume
Glass
White
Voltage
120
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Bulb Type
Integrated LED
Introduction Date
01/01/2019
Kelvin
3000
Length
14.00
Lumens / Light Output
1725
Material
Aluminum/Plastic
Ship Carton Height
14.50
Ship Carton Length
14.62
Ship Carton Width
1.50
Ship Weight
4.37
Special Features
Simple installation to steel mounting plate;Light weight polycarbonate luminaire construction;PMMA diffuser controls glare and provides an evenly illuminated surface;1725 lumens (delivered), 90CRI, 3000K;Integrated DC LED power supply capable of flicker-fr
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
1.10
Wire Included
6 in
Americans with Disabilities Act
No
Bulb Base
Integrated
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Certified Listed Location
Wet Location Listed
Construction Material Main part
Construction
Convertible Fixture Includes Both Mounts
FALSE
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Lutron_Nova T NTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_Caseta;IDevices_IDEV0009;Leviton_Trimatron 6681;Leviton_SureSlide 6672;Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153PH;Lutron_NTLV-600;Lutron_Maestro MAELV-600;Leviton_AWRMG-EAW
Dimming Protocol
Triac/Forward Phase;ELV/Reverse Phase
Energy Efficient
Yes
Energy Star
Yes
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Round
Grounded Convenience Outlet Included
No
JA8
2016
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
19.5
Lens Shade Material
Polycarbonate
Lumens per Watt
88.00
Mount Location
Flush-Mount
MTO
No
Operating Temperature Celcius Max
30°C
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Room Type
Closets;Pantry;Bedroom;Hall & Foyer;Kitchen
Safety Rating
cCSAus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Width Diameter
14 in dia.
Included Items
Bulbs: (1) x 19.5 Watt Integrated LED
