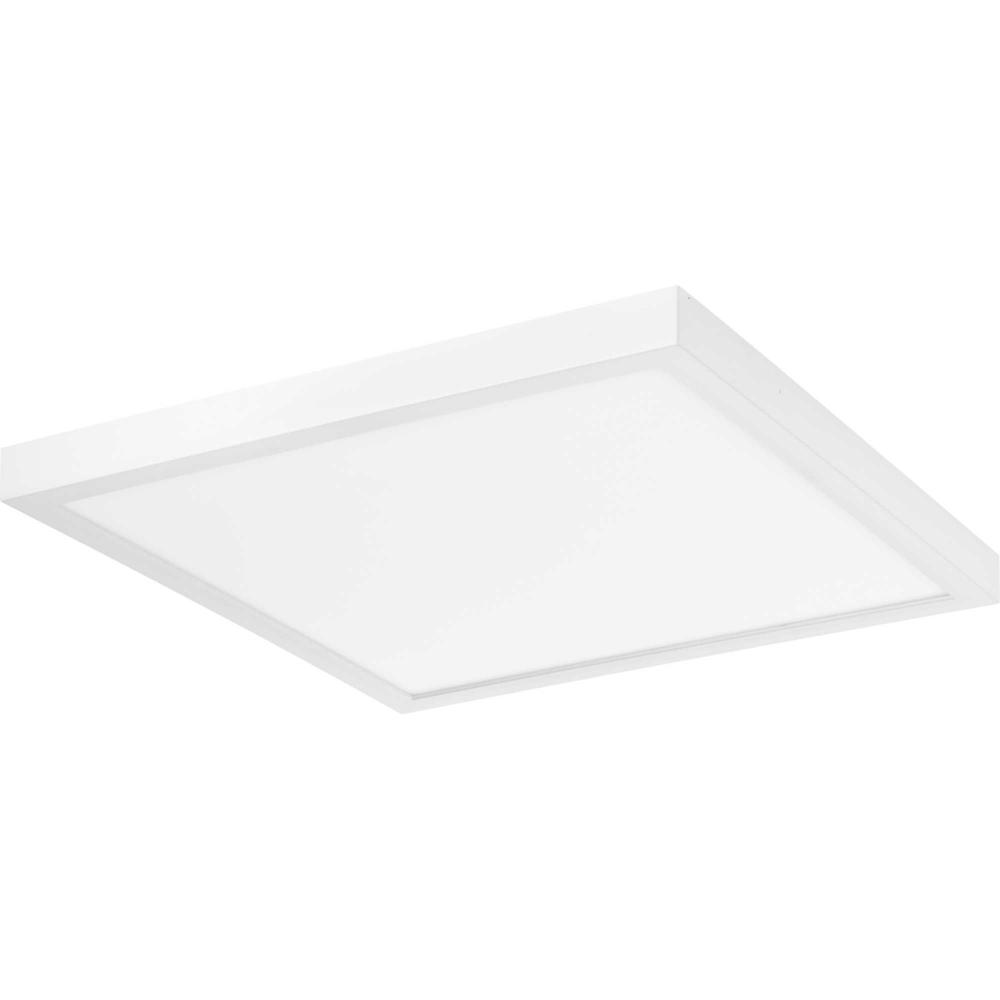

P810021-030-30 14IN EDGELIT SQUARE (GHLEH)
Edgelit technology creates a large glare-free and evenly illuminated surface for a variety of applications for both residential and commercial settings. Offering a low-profile design, LED Flush Mount is available in three sizes: 7", 11", and 14", in a White finish. The integrated driver does not recess into junction box, allowing for easy installation into 4" octagonal, 4" round PVC and 4-1/2" ceiling pan junction boxes. Wet location listed and offers a 50,000-hour LED life.
Downloads
Product Specification
Item #
GHLEH
Dimensions
Height: 1.13"
Width: 14.00"
Length: 14.00"
Additional product details
Internal #
GHLEH
Category
Exterior
, Flush Mounts
Subcategory
Exterior Flush mounts
, Outdoor Flush Mounts
Finish
White
Style
Transitional
Option
Energy Efficient
, Energy Star
, Title 24
, Wet Rated
, LED
, Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Wattage
20w
Category
Close-to-Ceiling
Finish
White
Option
Energy Efficient
, Energy Star
, Title 20
, Title 24
, Wet Rated
Family
Everlume
Glass
Diffused
Voltage
120
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Bulb Type
Integrated LED
Introduction Date
01/01/2020
Kelvin
3000
Length
14.00
Lumens / Light Output
1600
Material
Polycarbonate
Ship Carton Height
15.37
Ship Carton Length
14.25
Ship Carton Width
1.75
Ship Weight
4.97
Special Features
14” square Everlume Edgelit surface mount with LED technology 3000K, 90 CRI, 1600 lumens (delivered);Simple installation to steel mounting plate;Fixture is adjustable after installation, allowing for easy alignment;Light weight non-conductive polycarbona
Vendor Ship Method
Non UPS Shippable False
Warranty
5 year
Weight
4.85
Wire Included
6 in
Americans with Disabilities Act
No
Bulb Base
Integrated
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Certified Listed Location
Wet Location Listed
Construction Material Main part
Construction
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Eaton_AAL06;Eaton_SAL06P;IDevices_IDEV0009;Leviton_IPI06-1LZ;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Lutron_Nova T VTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_SCL-153P;Lutron_Toggler TGCL-153PH-WH;Lutron_Maestro MACL-153M
Dimming Protocol
Triac/Forward Phase;ELV/Reverse Phase
Energy Efficient
Yes
Energy Star
Yes
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Lens
Grounded Convenience Outlet Included
No
JA8
2019
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
20
Lens Shade Material
Polycarbonate
Lumens per Watt
84.00
Mount Location
Wall or Ceiling
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Safety Rating
cCSAus
Starting Temperature Minimum
-30 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Included Items
Bulbs: (1) x 20 Watt Integrated LED
