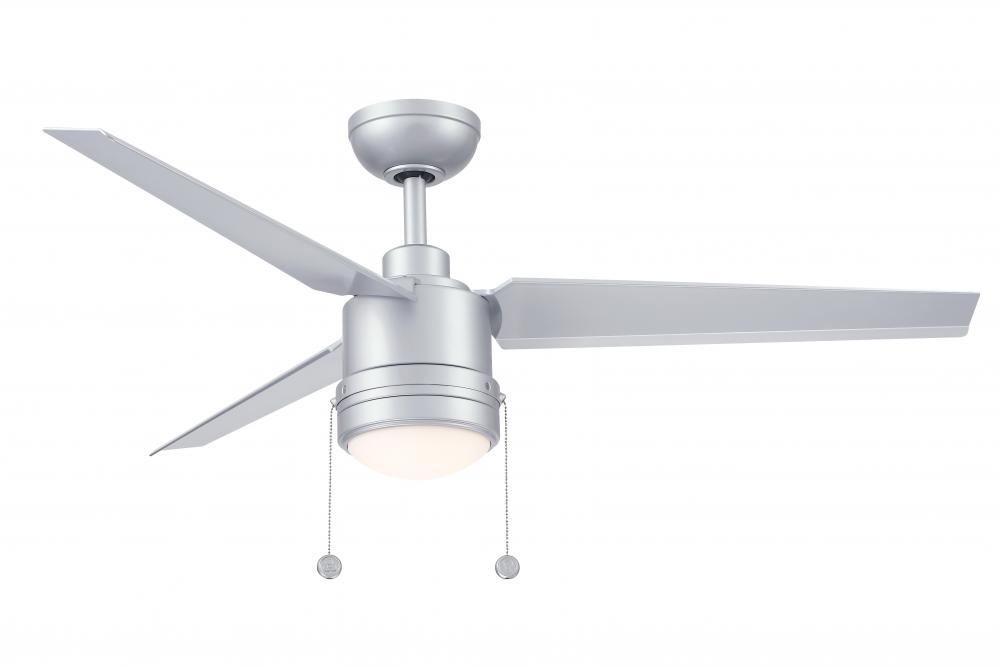

PC/DC - 52 Inch - SL with SL Blades and LED Light Kit (71CV3)
The Fanimation PC/DC Ceiling Fan is one of the newest inspirations, featuring Fanimation's first Pull Chain Ceiling Fan with a DC motor. The PC/DC is an indoor/outdoor 52 inch Ceiling Fan that offers Black, Matte White and Silver wet rated finishes with blades and LED light kit included. The PC/DC Fanimation Ceiling Fan has a look of sophistication and smooth structure, that can be displayed inside or outside the home. *Wet rated for Indoor/Outdoor use *Reverse airflow for multi-season use *Pull Chain motor control
Downloads
Product Specification
Item #
71CV3
Dimensions
Height: 16.91"
Width: 52.00"
Length: 52.00"
Additional product details
Internal #
71CV3
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Silver
Style
Traditional
Option
Wet Rated
Voltage
10-99
Lumens
1101-1600
Number of Blades
3 Blades
Location Rating
Wet Rated
Wattage
9w
Category
Fan-Uni
Finish
Silver
Option
Wet Rated
Family
PC/DC L
Glass
Opal Frosted
Voltage
120V
Number of Bulbs
1 Bulbs
Air Flow CFM
5874
Air Flow Efficiency
190
Blade Finish
Silver
Blade Pitch
13
Bulb Type
18W LED Module
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
52
Light Kit Included
Yes
Lumens / Light Output
1500
Motor Size
100 x 30
Motor Type
DC
Ship Carton Height
10.94
Ship Carton Length
26.18
Ship Carton Width
9.65
Ship Weight
17.24
Sold By
Each
Warranty
Limited Lifetime
Weight
15.06
Airflow Efficiency Low
832
Airflow Efficiency Medium
419
Avg Airflow Efficiency
188
Avg CFM Energy
3649
Avg Energy Use Watts
19
Avg Estimated Yearly Energy Cost
5
Avg Estimated Yearly Energy Cost on HIGH
9
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
6.3
Canopy Height
2.56
Cap Included
No
Carton Cubic Feet
1.6
Case Quantity
1
Case Weight Pounds
17.24
CEC Uploaded
Yes
Ceiling To Blade Edge
10.24
Ceiling To Bottom
16.91
CFM Low
1764
CFM Medium
3723
Compatible Accessories
CCK8002SLW, DR1-CPSL, DR1SS-12SLW, DR1SS-18SLW, DR1SS-24SLW, DR1SS-36SLW, DR1SS-48SLW, DR1SS-60SLW, DR1SS-72SLW, SCB1-52
Country of Origin
China
Current Draw High
0.47
Current Draw Low
0.07
Current Draw Medium
0.17
DOE Classification
LSSD
DOEFTC Uploaded
Yes
Downrod Length
6
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
7.52
Included Control Type
Pull Chain
Leadwire
54
Light Kit Energy Star
No
Max Ceiling Slope
27
Max Watt
31
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM High (VI)
168
RPM Low (II)
53
RPM Medium (IV)
111
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60HZ
Watts Low
2
Watts Medium
9
Watts Per Bulb
18
Wet Rated
Yes
Other Details:
- 16 speed DC motor with reverse switch, fan and light control
- 520
- Energy Star Most Efficient 2022
- Limited Lifetime Motor Warranty
- Pull Chain Control
- Set of (3) 52 inch wet rated blades and 18 watt LED light kit included
