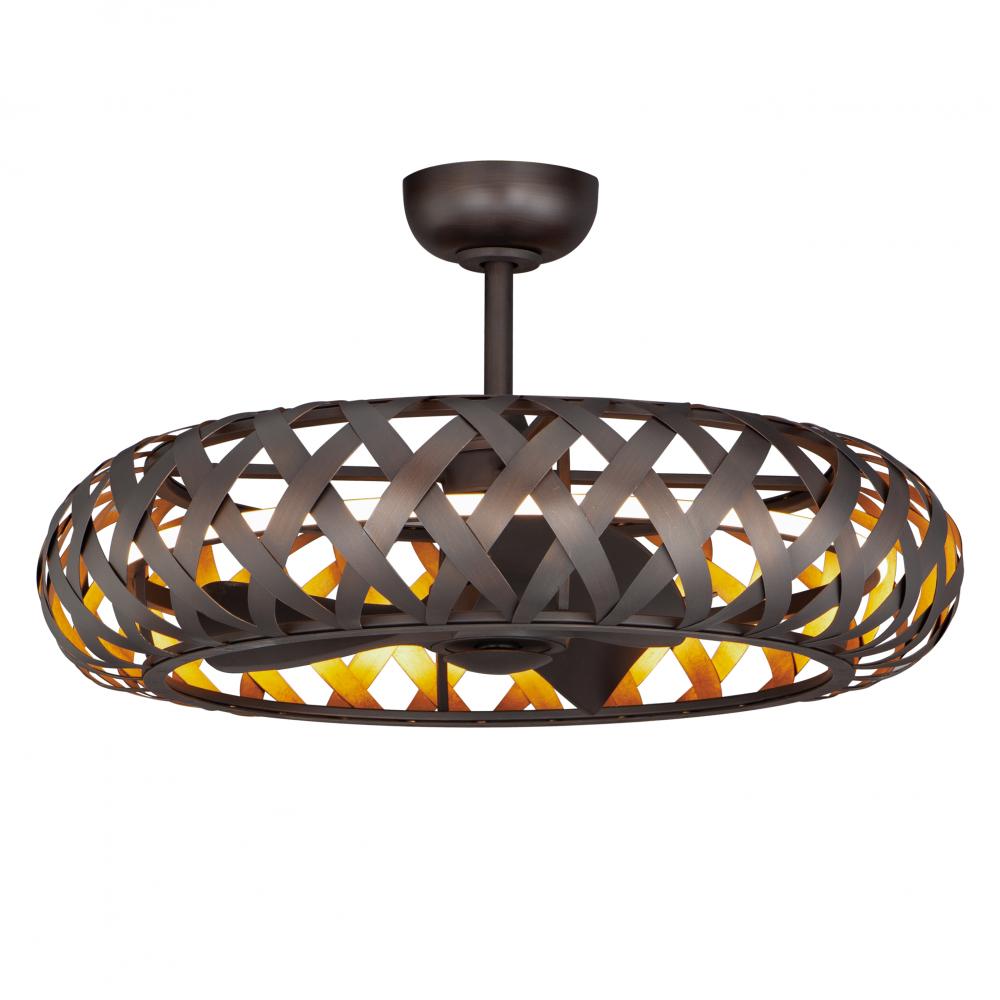

Weave-Fandelight (9UY3R)

Weave WiFi-enabled LED Fandelight

Downloads

Click Here to view Spec Sheet

Click Here to view Assembly Instruction Sheet

Product Specification

Item #

9UY3R

Dimensions

Height: 18.50"

Width: 33.00"

Additional product details

Internal #

9UY3R

Category

Fandelight , Smart Light

Style

Rustic , Transitional

Family

Weave

Voltage

120

Air Flow CFM

2252.13 - 1399 - 546.98

Air Flow Efficiency

Blade Pitch

Blades Included

Yes

Bulb Dimmable

By Remote Control or Smart Life App

Bulb Type

LED

Canopy

Length- 7 Width- 7 Height- 2.75

Chain Included

Introduction Date

44197

Kelvin

3000

Lumens / Light Output

2700

Material

Aluminum+Steel+ABS

Max Height

18.5

Motor Fan Speed

Motor RPM

325 - 185 - 90

Motor Size

92mm x 27mm

Motor Type

Remote Control Included

Yes

Ship Carton Height

14.38

Ship Carton Length

36.63

Ship Carton Width

36.63

Ship Weight

40.72

Sold By

Each

Switch/Control Included

Yes

Vendor Ship Method

UPS Oversized

Weight

28.15

Wire Included

AMPERAGE

0.33

Blade Ceiling Height

Blade Length

10.6

Blade Material

ABS

Carton Cubic Feet

11.165778

Cartons Per Unit

CRI

Damp Rated

Yes

Long Description

Bands of metal are woven onto a frame and finished in Bronze Gilt on the outside and a contrasting Gold Leaf finish on the inside. An LED light source peers through openings in the weave and directs light outward eliminating any strobing effect that fans m

Loudness

Low Ceiling Adaptable

Number of Blades

Opt Control Type

FCT6000WT

Output Voltage

Overall Minimum Height

18.5

Pull Chain Included

Receiver Included

Yes

Remote Features

FCT6000WT: Fan Speed, Light, Timer, Reverse, Natur

REVERSIBLE

Yes

Safety Rating

cETLus

Transformer/ Ballast/ Driver

Driver: Yes

Unit Increments

Wall Control Features

FCT6000WT: Fan Speed, Light, Timer, Reverse, Natur

Finish

Additional options that would change other selections

Included Items

Bulbs: (1) x 43 Watt PCB Integrated
